ESP8266 and Blynk setup.

ESp8266 nodemcu blynk app

In the previous article I shared what ESP8266 is and how to use it. If you haven’t read it yet, you can refer it here. In this blog I will be giving a quick setup guide to installing and using Blynk app with ESP8266.

We will also do a small project in which we will be able to control 2 LEDs using Android App over the Internet. So without any further ado, let’s dive right into it.

Requirements.

Hardware.

Software.

Connections to ESP8266:

First let’s make the connections on a breadboard. Here we will be controlling two LEDs via Blynk so make the following circuit on a breadboard.

esp8266 blynk led circuit
  • First LED to D0 of ESP.
  • Second LED to D1 of ESP.
  • A 220Ω resistor is used in series with each.

Blynk App.

First head to playstore or appstore and download the latest version of Blynk App. Then create an account or sign-in using google.

  • Click on “New Project”
blynk new project
  • Give a name to the project. For example here I have named it “LEDTest”.
  • Next tap on “Choose device” and select “NodeMCU” and hit “Create”.
select hardware blynk
  • Now blynk will send an authentication token to your email address. Just tap on “OK”.
  • Goto the ‘+’ button on top right corner and select “Button”.
  • Select 2 buttons as we need to control 2 LEDs.
  • Click on one button to open it’s settings. Here give the button a name as I have given “LED 1”.
  • Select a pin that this button will toggle. Here select “D0”.
  • Finally toggle the mode to switch.
  • Do same for second button only give it a different name and select pin D1.

Now all we have to do is upload a code to the ESP board and we are good to go.

Setting up IDE and Programming ESP8266:

Before you can program an ESP board with Arduino IDE, Some steps needs to be taken. To know what you have to do in more details, check out this tutorial.

After the IDE is setup to be used with ESP, follow the steps given below to install Blynk libraries.

  • First visit Blynk’s Github page and download the latest release.
  • Extract the Zip file and goto the library folder. Copy all the files in the folder.
  • Now goto the drive where you have installed Arduino. It us usually in C drive in “Program Files (x86)”.
  • Goto Arduino >> Libraries and paste the files copied before.
  • Next goto Blynk folder and into Tools. Copy all the files from there.
  • Goto Arduino >> Tools and paste the files.

Now open Arduino IDE and follow the steps below to edit and upload the code.

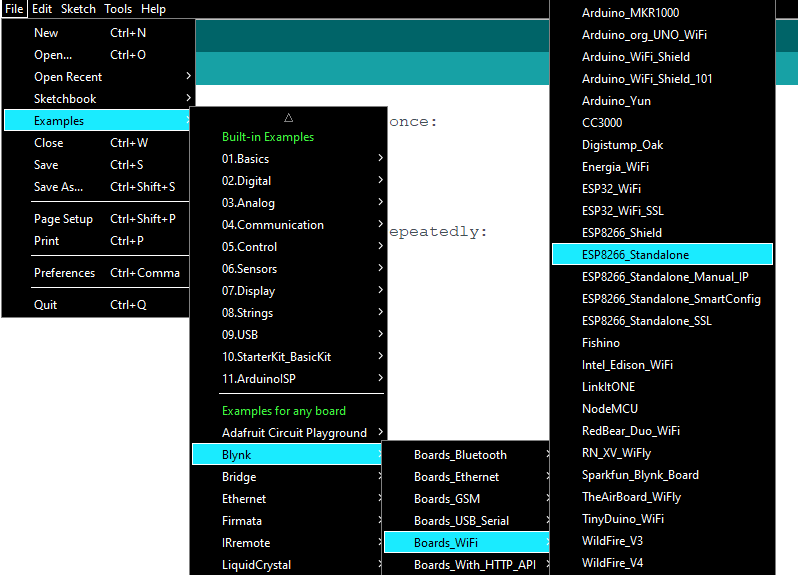

  • Goto >> File >> Examples >> Blynk >> Boards_WiFi >> ESP8266_Standalone.
blynk esp8266 standalone
  • Add the authentication token received in the mail to the “auth[]”.
  • Add the name of your WiFi where SSID is asked.
  • And add your WiFi password .

Now connect the NodeMCU board to your PC and upload the code. Make sure you select the correct board and port from the tools.

Video Tutorial.

Check out the above tutorial for more details.

Final Note.

Now we can test the project, first power up the board and wait for a few seconds. It should automictically connect to your WiFi network.

Next open the blynk app and click on the play icon on top bar. This will enable the app and you will be able to control the LEDs with the help of buttons on the app.

That is all for this tutorial. I hope you learnt something new. If you liked this article and want more like it subscribe to our newsletter to stay updated with latest posts.
